Generate simulated patches

Usage

generate_patches(simulated_field_sf, config_sp)

Arguments

simulated_field_sf

A simulated field as an sf object as generated by the function generate_field

config_sp

A list that contains the parameters for filtering the field to patches. The list should contain the following parameters:

patch_threshold: a numeric representing the threshold below which the field is masked away to leave only the patches

Value

an sf object that represents the simulated patches

Details

Generate simulated patches from a simulated field. In this context a patch is defined as an isolated area of a field. This could represent a stand of a specific species of tree, or a coral reef as just two examples. The patches are generated by filtering the field to only include areas that are above a certain threshold.

Author

Murray

Examples

library(sf)
library(gstat)
library(ggplot2)
config_sp <- list(
 seed = 1,
 crs = 4326,
 model = "Exp",
 psill = 1,
 range = 15,
 nugget = 0,
 patch_threshold = 1.75
)
spatial_domain <- st_geometry(
  st_multipoint(
    x = rbind(
      c(0, -10),
      c(3, -10),
      c(10, -20),
      c(1, -21),
      c(2, -16),
      c(0, -10)
    )
  )
) |>
  st_set_crs(config_sp$crs) |>
  st_cast("POLYGON")
set.seed(config_sp$seed)
spatial_grid <- spatial_domain |>
  st_set_crs(NA) |>
  st_sample(size = 10000, type = "regular") |>
  st_set_crs(config_sp$crs)
simulated_field <- generate_field(spatial_grid, config_sp)
#> [using unconditional Gaussian simulation]
simulated_patches <- generate_patches(simulated_field, config_sp)
#> Spherical geometry (s2) switched off
#> Spherical geometry (s2) switched on

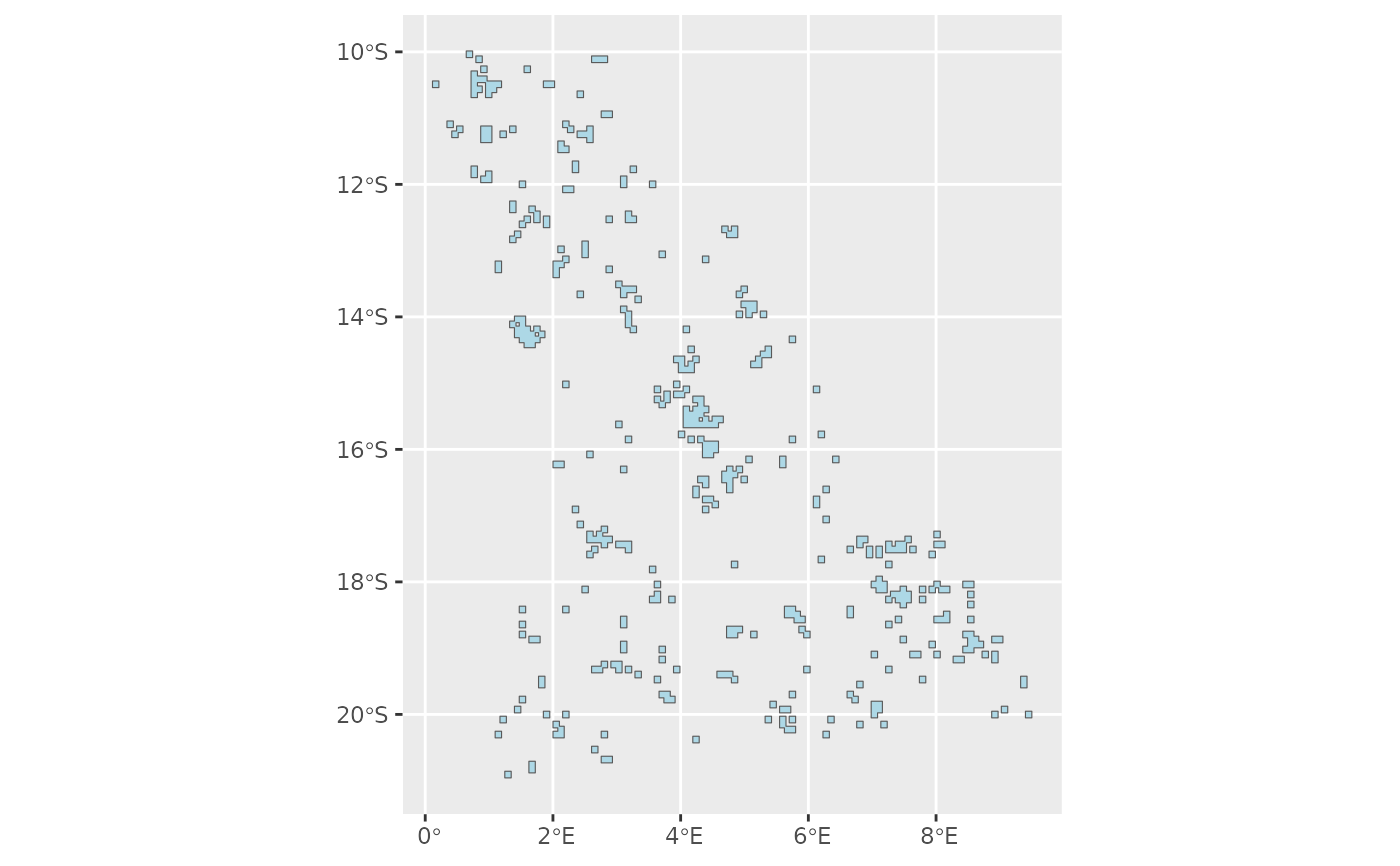

simulated_patches |> ggplot() + geom_sf(fill="lightblue")
